Acrosser released new SD-WAN White-box solution

In order to help enterprises to migrate from traditional WAN to the latest SD-WAN, acrosser Technology announced is introducing its new SD-WAN White-Box Solution to its all customers.

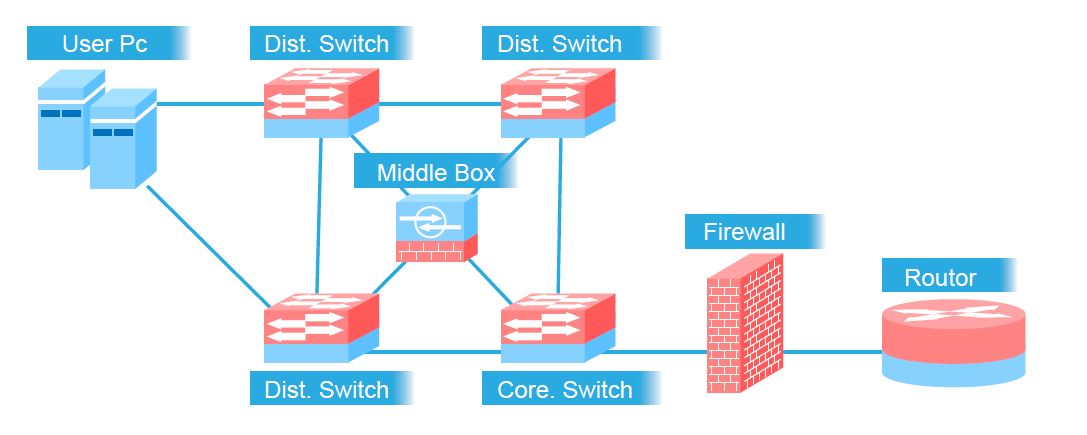

Traditional WAN based on conventional routers is not a cloud-friendly orientation. Usually, it included a multitude of single-function devices and appliances connecting via different WAN links. This infrastructure sprawl causes the complexity of branch IT management. Under traditional WAN, each device has to be configured separately which is prone to errors, and many configuration changes are needed to do manually. Generally speaking, traditional WAN is router-centric and costs the company a large amount of time, resources, and expertise.

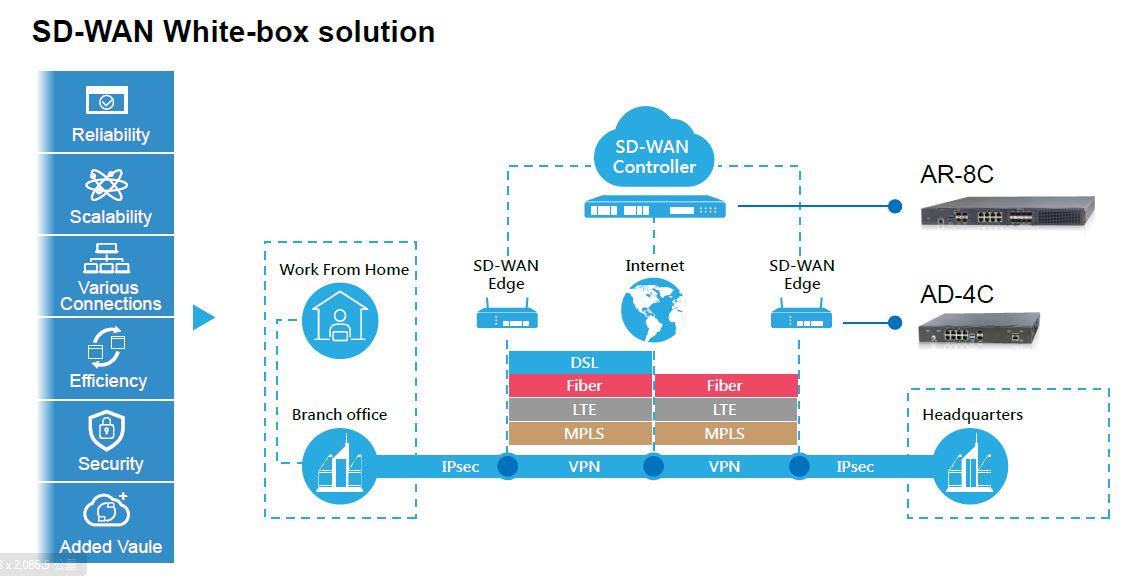

Unlike the old traditional router-centric WAN architecture, a Software-defined Wide Area Network (SD-WAN) is a virtual WAN architecture that allows enterprises to leverage any combination of transport services to securely connect users to applications. The SD-WAN solution is designed to integrate multiple modes of transport, increase network agility, optimize the app performance and availability, and simplify network management.

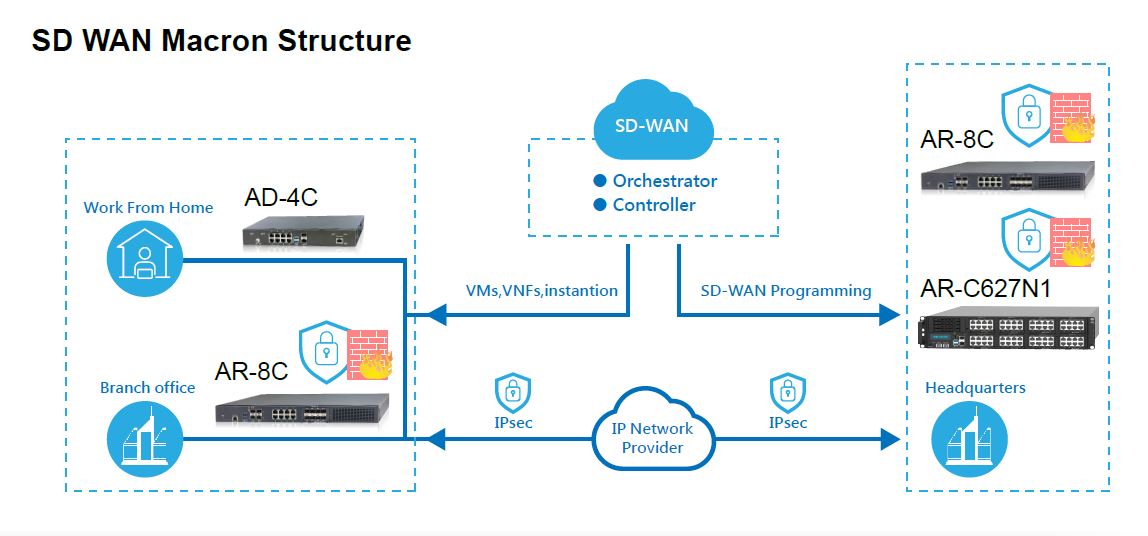

To deploy an efficient SD-WAN Marco structure, you will need SD-WAN white boxes with excellent performance to build a solid networking infrastructure. To fulfill these needs, Acrosser released 2 brand new SD-WAN white-boxes, AND-DNV3N3-4C, and ANR–DNV3N3-8C to all its customers.

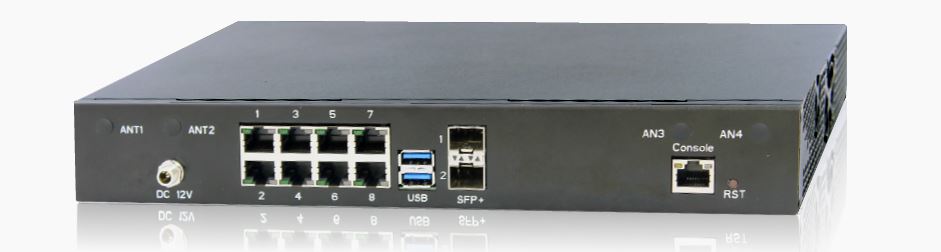

AD–4C, a desktop SD-WAN white-box solution powered by Intel® Atom® C3558 Denverton-NS 4 cores CPU, is an excellent choice for SOHO, SMB, or branch offices and perfect for vCPE/SD-WAN of SDN/NFV structure. In addition to AD– 4C, AR– 8C is a rackmount SD-WAN white-box with Intel Atom C3758 Denverton-NS 8 core CPU and perfect for branch or SME offices for SD-WAN solution.

All Acrosser SD-WAN white-boxes are built with great quality and including 6 features that outperform other white-boxes in the market.

  1. NFV-Ready:

By adopting standardized virtualization technology to simulate specific network devices by software with our powerful multi-core CPU computing capability, Acrosser’s SD-WAN white-boxes can install, deploy, upgrade and maintain various virtual networking devices in a single normal server.

  1. Low-power-consumption:

Acrosser’s SD-WAN white-boxes are all low power and power saving because applying the latest Denverton NS CPU platform.

  1. Fan-less design:

Acrosser’s AND–DNV3N3-4C is fan-less because it is built with solid quality and reliable engineering design,

  1. Support wired and wireless connection.

Acrosser’s SD-WAN white-boxes are all support both copper and fiber which can be programmed as switch ports or router ports. In addition, both models can support WiFi5 and 4G to provide wireless communication.

  1. Great expansion ability:

Acrosser’s SD-WAN white-boxes are all supporting more than 10 Ethernet ports which can provide powerful expansion capabilities and of satisfying most needs of various scenarios.

  1. Value added-on to improve efficiency.

Besides these excellent features AND–DNV3N3-4C and ANR–DNV3N3-8C also support extra 3 important add-ons for SD-WAN white-boxes:

Support QAT which can provide extended accelerated encryption and compression services by offloading the actual encryption and compression request(s) to the hardware QuickAssist accelerators, which are more efficient in terms of cost and power than general-purpose CPUs for those specific compute-intensive workloads.

Support an open software-DPDK which is the Data Plane Development Kit that consists of libraries to accelerate packet processing workloads running on a wide variety of CPU architectures.

Support SR-IOV which can create more virtual LAN port than physical ones.

Acrosser AND-DNV3N3-4C Major Features:

  • CPU: Intel Atom C3558 (Denverton-NS 4 core)

–      Dedicated for Networking & Storage product, the most powerful Atom.

–      Low power & fanless design (power saving & reliable)

–      Support DPDK & QAT (5Gbs AES Encryption / Compression)

–      SFP+ supports SR-IOV

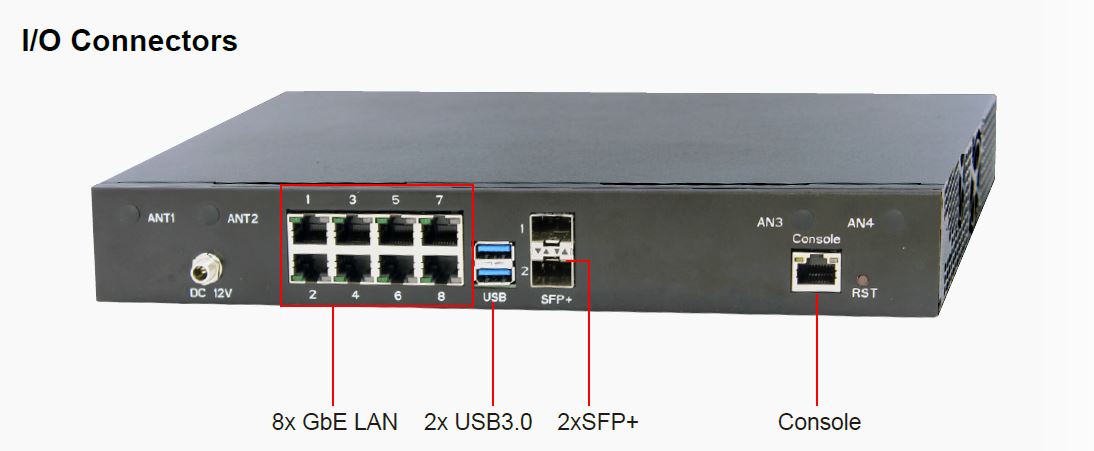

  • Data path: 8x GbE Copper, 2x SFP+

–      Support both media (Copper and fiber)

–      Can be programmed as switch ports or router ports

  • Wireless: WiFi5 and 4G

–      Optional WLAN supports 1.3Gbps overall throughput with 3 antenna

–      Optional 4G or Ext. USB 4G dongle to support 4G connection

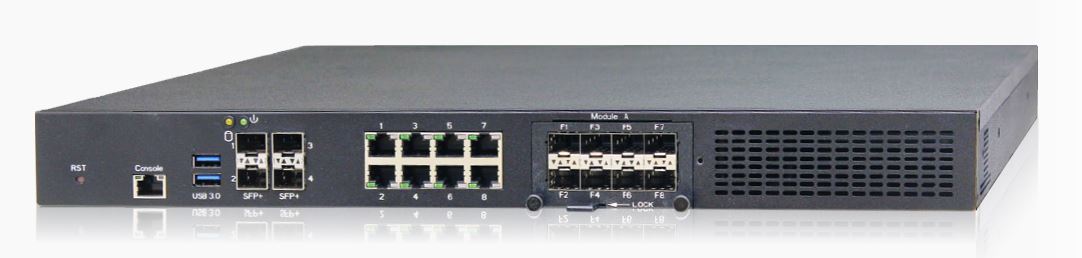

Acrosser ANR-DNV3N3-8C Major Features:

  • CPU: Intel Atom C3758 (Denverton-NS  8 core)

–      Dedicated for Networking & Storage product, the most powerful Atom.

–      Support DPDK & QAT (10Gbs AES Encryption / Compression)

–      SFP+ supports SR-IOV

  • Data path: 8x GbE Copper, 4x SFP+

–      Support both media (Copper and fiber)

–      Can be programmed as switch ports or router ports

  • Wireless: WiFi or 4G

–      Ext. USB WiFi module to support WLAN connection

–      Ext. USB 4G dongle to support 4G connection

Acrosser Technology is helping enterprises provide remote working environments in coronavirus crisis, and to meet the increasing needs for SD-WAN white-box. Samples of both AND–DNV3N3-4C and ANR–DNV3N3-8C are ready for you. Please use our online inquiry system to ask for more detail.
